手把手入门MO | 如何使用 Flink 将批量数据写入 MatrixOne

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <modelVersion>4.0.0</modelVersion>
    <groupId>com.matrixone.flink</groupId>    <artifactId>matrixone-flink-demo</artifactId>    <version>1.0-SNAPSHOT</version>
    <properties>        <scala.binary.version>2.12</scala.binary.version>        <java.version>1.8</java.version>        <flink.version>1.17.0</flink.version>        <scope.mode>compile</scope.mode>    </properties>
    <dependencies>
        <!-- Flink Dependency -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-connector-hive_2.12</artifactId>            <version>${flink.version}</version>        </dependency>
        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-java</artifactId>            <version>${flink.version}</version>        </dependency>
        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-streaming-java</artifactId>            <version>${flink.version}</version>        </dependency>
        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-clients</artifactId>            <version>${flink.version}</version>        </dependency>
        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-table-api-java-bridge</artifactId>            <version>${flink.version}</version>        </dependency>
        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-table-planner_2.12</artifactId>            <version>${flink.version}</version>        </dependency>
        <!-- JDBC相关依赖包 -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-connector-jdbc</artifactId>            <version>1.15.4</version>        </dependency>        <dependency>            <groupId>mysql</groupId>            <artifactId>mysql-connector-java</artifactId>            <version>8.0.33</version>        </dependency>
        <!-- Kafka相关依赖 -->        <dependency>            <groupId>org.apache.kafka</groupId>            <artifactId>kafka_2.13</artifactId>            <version>3.5.0</version>        </dependency>        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-connector-kafka</artifactId>            <version>3.0.0-1.17</version>        </dependency>
        <!-- JSON -->        <dependency>            <groupId>com.alibaba.fastjson2</groupId>            <artifactId>fastjson2</artifactId>            <version>2.0.34</version>        </dependency>
    </dependencies>



    <build>        <plugins>            <plugin>                <groupId>org.apache.maven.plugins</groupId>                <artifactId>maven-compiler-plugin</artifactId>                <version>3.8.0</version>                <configuration>                    <source>${java.version}</source>                    <target>${java.version}</target>                    <encoding>UTF-8</encoding>                </configuration>            </plugin>            <plugin>                <artifactId>maven-assembly-plugin</artifactId>                <version>2.6</version>                <configuration>                    <descriptorRefs>                        <descriptor>jar-with-dependencies</descriptor>                    </descriptorRefs>                </configuration>                <executions>                    <execution>                        <id>make-assembly</id>                        <phase>package</phase>                        <goals>                            <goal>single</goal>                        </goals>                    </execution>                </executions>            </plugin>
        </plugins>    </build>
</project>

CREATE DATABASE test;USE test;CREATE TABLE `person` (`id` INT DEFAULT NULL, `name` VARCHAR(255) DEFAULT NULL, `birthday` DATE DEFAULT NULL);INSERT INTO test.person (id, name, birthday) VALUES(1, 'zhangsan', '2023-07-09'),(2, 'lisi', '2023-07-08'),(3, 'wangwu', '2023-07-12');

package com.matrixone.flink.demo;
import org.apache.flink.api.common.functions.MapFunction;import org.apache.flink.api.common.typeinfo.BasicTypeInfo;import org.apache.flink.api.java.ExecutionEnvironment;import org.apache.flink.api.java.operators.DataSource;import org.apache.flink.api.java.operators.MapOperator;import org.apache.flink.api.java.typeutils.RowTypeInfo;import org.apache.flink.connector.jdbc.JdbcInputFormat;import org.apache.flink.types.Row;
import java.text.SimpleDateFormat;
/** * @author MatrixOne * @description */public class MoRead {
    private static String srcHost = "192.168.146.10";    private static Integer srcPort = 6001;    private static String srcUserName = "root";    private static String srcPassword = "111";    private static String srcDataBase = "test";
    public static void main(String[] args) throws Exception {
        ExecutionEnvironment environment = ExecutionEnvironment.getExecutionEnvironment();        // 设置并行度        environment.setParallelism(1);        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");
        // 设置查询的字段类型        RowTypeInfo rowTypeInfo = new RowTypeInfo(                new BasicTypeInfo[]{                        BasicTypeInfo.INT_TYPE_INFO,                        BasicTypeInfo.STRING_TYPE_INFO,                        BasicTypeInfo.DATE_TYPE_INFO                },                new String[]{                        "id",                        "name",                        "birthday"                }        );
        DataSource<Row> dataSource = environment.createInput(JdbcInputFormat.buildJdbcInputFormat()                .setDrivername("com.mysql.cj.jdbc.Driver")                .setDBUrl("jdbc:mysql://" + srcHost + ":" + srcPort + "/" + srcDataBase)                .setUsername(srcUserName)                .setPassword(srcPassword)                .setQuery("select * from person")                .setRowTypeInfo(rowTypeInfo)                .finish());
        // 将 Wed Jul 12 00:00:00 CST 2023 日期格式转换为 2023-07-12        MapOperator<Row, Row> mapOperator = dataSource.map((MapFunction<Row, Row>) row -> {            row.setField("birthday", sdf.format(row.getField("birthday")));            return row;        });

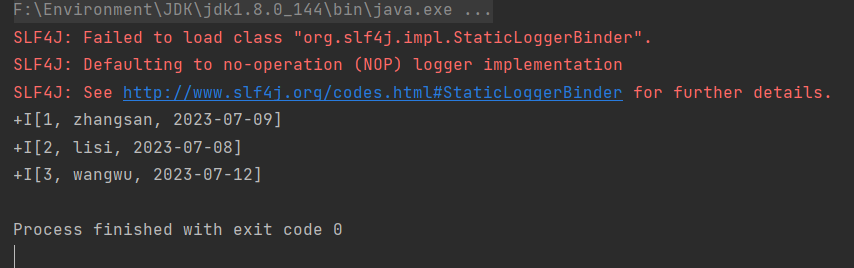

        mapOperator.print();    }}

mysql -h127.0.0.1 -P3306 -uroot -prootmysql> CREATE DATABASE motest;mysql> USE motest;mysql> CREATE TABLE `person` (`id` int DEFAULT NULL, `name` varchar(255) DEFAULT NULL, `birthday` date DEFAULT NULL);mysql> INSERT INTO motest.person (id, name, birthday) VALUES(2, 'lisi', '2023-07-09'),(3, 'wangwu', '2023-07-13'),(4, 'zhaoliu', '2023-08-08');

-- 在 node3 上，使用 Mysql 客户端连接 node1 的 MatrixOnemysql -h192.168.146.10 -P6001 -uroot -p111mysql> TRUNCATE TABLE test.person;

package com.matrixone.flink.demo.entity;

import java.util.Date;
public class Person {
    private int id;    private String name;    private Date birthday;
    public int getId() {        return id;    }
    public void setId(int id) {        this.id = id;    }
    public String getName() {        return name;    }
    public void setName(String name) {        this.name = name;    }
    public Date getBirthday() {        return birthday;    }
    public void setBirthday(Date birthday) {        this.birthday = birthday;    }}

package com.matrixone.flink.demo;
import com.matrixone.flink.demo.entity.Person;import org.apache.flink.api.common.functions.MapFunction;import org.apache.flink.api.common.typeinfo.BasicTypeInfo;import org.apache.flink.api.java.typeutils.RowTypeInfo;import org.apache.flink.connector.jdbc.*;import org.apache.flink.streaming.api.datastream.DataStreamSink;import org.apache.flink.streaming.api.datastream.DataStreamSource;import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;import org.apache.flink.types.Row;
import java.sql.Date;
/** * @author MatrixOne * @description */public class Mysql2Mo {
    private static String srcHost = "127.0.0.1";    private static Integer srcPort = 3306;    private static String srcUserName = "root";    private static String srcPassword = "root";    private static String srcDataBase = "motest";
    private static String destHost = "192.168.146.10";    private static Integer destPort = 6001;    private static String destUserName = "root";    private static String destPassword = "111";    private static String destDataBase = "test";    private static String destTable = "person";

    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment environment = StreamExecutionEnvironment.getExecutionEnvironment();        //设置并行度        environment.setParallelism(1);        //设置查询的字段类型        RowTypeInfo rowTypeInfo = new RowTypeInfo(                new BasicTypeInfo[]{                        BasicTypeInfo.INT_TYPE_INFO,                        BasicTypeInfo.STRING_TYPE_INFO,                        BasicTypeInfo.DATE_TYPE_INFO                },                new String[]{                        "id",                        "name",                        "birthday"                }        );
        //添加 srouce        DataStreamSource<Row> dataSource = environment.createInput(JdbcInputFormat.buildJdbcInputFormat()                .setDrivername("com.mysql.cj.jdbc.Driver")                .setDBUrl("jdbc:mysql://" + srcHost + ":" + srcPort + "/" + srcDataBase)                .setUsername(srcUserName)                .setPassword(srcPassword)                .setQuery("select * from person")                .setRowTypeInfo(rowTypeInfo)                .finish());
        //进行 ETL        SingleOutputStreamOperator<Person> mapOperator = dataSource.map((MapFunction<Row, Person>) row -> {            Person person = new Person();            person.setId((Integer) row.getField("id"));            person.setName((String) row.getField("name"));            person.setBirthday((java.util.Date)row.getField("birthday"));            return person;        });
        //设置 matrixone sink 信息        mapOperator.addSink(                JdbcSink.sink(                        "insert into " + destTable + " values(?,?,?)",                        (ps, t) -> {                            ps.setInt(1, t.getId());                            ps.setString(2, t.getName());                            ps.setDate(3, new Date(t.getBirthday().getTime()));                        },                        new JdbcConnectionOptions.JdbcConnectionOptionsBuilder()                                .withDriverName("com.mysql.cj.jdbc.Driver")                                .withUrl("jdbc:mysql://" + destHost + ":" + destPort + "/" + destDataBase)                                .withUsername(destUserName)                                .withPassword(destPassword)                                .build()                )        );
        environment.execute();    }
}

mysql> select * from test.person;+------+---------+------------+| id   | name    | birthday   |+------+---------+------------+|    2 | lisi    | 2023-07-09 ||    3 | wangwu  | 2023-07-13 ||    4 | zhaoliu | 2023-08-08 |+------+---------+------------+3 rows in set (0.01 sec)

# Licensed to the Apache Software Foundation (ASF) under one or more# contributor license agreements.  See the NOTICE file distributed with# this work for additional information regarding copyright ownership.# The ASF licenses this file to You under the Apache License, Version 2.0# (the "License"); you may not use this file except in compliance with# the License.  You may obtain a copy of the License at##    http://www.apache.org/licenses/LICENSE-2.0## Unless required by applicable law or agreed to in writing, software# distributed under the License is distributed on an "AS IS" BASIS,# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.# See the License for the specific language governing permissions and# limitations under the License.
## This configuration file is intended for use in KRaft mode, where# Apache ZooKeeper is not present.  See config/kraft/README.md for details.#
############################# Server Basics #############################
# The role of this server. Setting this puts us in KRaft modeprocess.roles=broker,controller
# The node id associated with this instance's rolesnode.id=1
# The connect string for the controller quorumcontroller.quorum.voters=1@192.168.146.12:9093
############################# Socket Server Settings #############################
# The address the socket server listens on.# Combined nodes (i.e. those with `process.roles=broker,controller`) must list the controller listener here at a minimum.# If the broker listener is not defined, the default listener will use a host name that is equal to the value of java.net.InetAddress.getCanonicalHostName(),# with PLAINTEXT listener name, and port 9092.#   FORMAT:#     listeners = listener_name://host_name:port#   EXAMPLE:#     listeners = PLAINTEXT://your.host.name:9092#listeners=PLAINTEXT://:9092,CONTROLLER://:9093listeners=PLAINTEXT://192.168.146.12:9092,CONTROLLER://192.168.146.12:9093
# Name of listener used for communication between brokers.inter.broker.listener.name=PLAINTEXT
# Listener name, hostname and port the broker will advertise to clients.# If not set, it uses the value for "listeners".#advertised.listeners=PLAINTEXT://localhost:9092
# A comma-separated list of the names of the listeners used by the controller.# If no explicit mapping set in `listener.security.protocol.map`, default will be using PLAINTEXT protocol# This is required if running in KRaft mode.controller.listener.names=CONTROLLER
# Maps listener names to security protocols, the default is for them to be the same. See the config documentation for more detailslistener.security.protocol.map=CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT,SSL:SSL,SASL_PLAINTEXT:SASL_PLAINTEXT,SASL_SSL:SASL_SSL
# The number of threads that the server uses for receiving requests from the network and sending responses to the networknum.network.threads=3
# The number of threads that the server uses for processing requests, which may include disk I/Onum.io.threads=8
# The send buffer (SO_SNDBUF) used by the socket serversocket.send.buffer.bytes=102400
# The receive buffer (SO_RCVBUF) used by the socket serversocket.receive.buffer.bytes=102400
# The maximum size of a request that the socket server will accept (protection against OOM)socket.request.max.bytes=104857600

############################# Log Basics #############################
# A comma separated list of directories under which to store log fileslog.dirs=/home/software/kafka_2.13-3.5.0/kraft-combined-logs
# The default number of log partitions per topic. More partitions allow greater# parallelism for consumption, but this will also result in more files across# the brokers.num.partitions=1
# The number of threads per data directory to be used for log recovery at startup and flushing at shutdown.# This value is recommended to be increased for installations with data dirs located in RAID array.num.recovery.threads.per.data.dir=1
############################# Internal Topic Settings  ############################## The replication factor for the group metadata internal topics "__consumer_offsets" and "__transaction_state"# For anything other than development testing, a value greater than 1 is recommended to ensure availability such as 3.offsets.topic.replication.factor=1transaction.state.log.replication.factor=1transaction.state.log.min.isr=1
############################# Log Flush Policy #############################
# Messages are immediately written to the filesystem but by default we only fsync() to sync# the OS cache lazily. The following configurations control the flush of data to disk.# There are a few important trade-offs here:#    1. Durability: Unflushed data may be lost if you are not using replication.#    2. Latency: Very large flush intervals may lead to latency spikes when the flush does occur as there will be a lot of data to flush.#    3. Throughput: The flush is generally the most expensive operation, and a small flush interval may lead to excessive seeks.# The settings below allow one to configure the flush policy to flush data after a period of time or# every N messages (or both). This can be done globally and overridden on a per-topic basis.
# The number of messages to accept before forcing a flush of data to disk#log.flush.interval.messages=10000
# The maximum amount of time a message can sit in a log before we force a flush#log.flush.interval.ms=1000
############################# Log Retention Policy #############################
# The following configurations control the disposal of log segments. The policy can# be set to delete segments after a period of time, or after a given size has accumulated.# A segment will be deleted whenever *either* of these criteria are met. Deletion always happens# from the end of the log.
# The minimum age of a log file to be eligible for deletion due to agelog.retention.hours=72
# A size-based retention policy for logs. Segments are pruned from the log unless the remaining# segments drop below log.retention.bytes. Functions independently of log.retention.hours.#log.retention.bytes=1073741824
# The maximum size of a log segment file. When this size is reached a new log segment will be created.log.segment.bytes=1073741824
# The interval at which log segments are checked to see if they can be deleted according# to the retention policieslog.retention.check.interval.ms=300000

#生成集群ID$ KAFKA_CLUSTER_ID="$(bin/kafka-storage.sh random-uuid)"#设置日志目录格式$ bin/kafka-storage.sh format -t $KAFKA_CLUSTER_ID -c config/kraft/server.properties#启动Kafka服务$ bin/kafka-server-start.sh config/kraft/server.properties

$ bin/kafka-topics.sh --create --topic matrixone --bootstrap-server 192.168.146.12:9092

CREATE TABLE `users` (`id` INT DEFAULT NULL,`name` VARCHAR(255) DEFAULT NULL,`age` INT DEFAULT NULL)

package com.matrixone.flink.demo.entity;
public class User {
    private int id;    private String name;    private int age;
    public int getId() {        return id;    }
    public void setId(int id) {        this.id = id;    }
    public String getName() {        return name;    }
    public void setName(String name) {        this.name = name;    }
    public int getAge() {        return age;    }
    public void setAge(int age) {        this.age = age;    }}

package com.matrixone.flink.demo;
import com.alibaba.fastjson2.JSON;import com.matrixone.flink.demo.entity.User;import org.apache.flink.api.common.eventtime.WatermarkStrategy;import org.apache.flink.api.common.serialization.AbstractDeserializationSchema;import org.apache.flink.connector.jdbc.JdbcExecutionOptions;import org.apache.flink.connector.jdbc.JdbcSink;import org.apache.flink.connector.jdbc.JdbcStatementBuilder;import org.apache.flink.connector.jdbc.internal.options.JdbcConnectorOptions;import org.apache.flink.connector.kafka.source.KafkaSource;import org.apache.flink.connector.kafka.source.enumerator.initializer.OffsetsInitializer;import org.apache.flink.streaming.api.datastream.DataStreamSource;import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;import org.apache.kafka.clients.consumer.OffsetResetStrategy;
import java.nio.charset.StandardCharsets;
/** * @author MatrixOne * @desc */public class Kafka2Mo {
    private static String srcServer = "192.168.146.12:9092";    private static String srcTopic = "matrixone";    private static String consumerGroup = "matrixone_group";
    private static String destHost = "192.168.146.10";    private static Integer destPort = 6001;    private static String destUserName = "root";    private static String destPassword = "111";    private static String destDataBase = "test";
    public static void main(String[] args) throws Exception {
        //初始化环境        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();        //设置并行度        env.setParallelism(1);
        //设置 kafka source 信息        KafkaSource<User> source = KafkaSource.<User>builder()                //Kafka 服务                .setBootstrapServers(srcServer)                //消息主题                .setTopics(srcTopic)                //消费组                .setGroupId(consumerGroup)                //偏移量 当没有提交偏移量则从最开始开始消费                .setStartingOffsets(OffsetsInitializer.committedOffsets(OffsetResetStrategy.LATEST))                //自定义解析消息内容                .setValueOnlyDeserializer(new AbstractDeserializationSchema<User>() {                    @Override                    public User deserialize(byte[] message) {                        return JSON.parseObject(new String(message, StandardCharsets.UTF_8), User.class);                    }                })                .build();        DataStreamSource<User> kafkaSource = env.fromSource(source, WatermarkStrategy.noWatermarks(), "kafka_maxtixone");        //kafkaSource.print();
        //设置 matrixone sink 信息        kafkaSource.addSink(JdbcSink.sink(                "insert into users (id,name,age) values(?,?,?)",                (JdbcStatementBuilder<User>) (preparedStatement, user) -> {                    preparedStatement.setInt(1, user.getId());                    preparedStatement.setString(2, user.getName());                    preparedStatement.setInt(3, user.getAge());                },                JdbcExecutionOptions.builder()                        //默认值 5000                        .withBatchSize(1000)                        //默认值为 0                        .withBatchIntervalMs(200)                        //最大尝试次数                        .withMaxRetries(5)                        .build(),                JdbcConnectorOptions.builder()                        .setDBUrl("jdbc:mysql://"+destHost+":"+destPort+"/"+destDataBase)                        .setUsername(destUserName)                        .setPassword(destPassword)                        .setDriverName("com.mysql.cj.jdbc.Driver")                        .build()        ));        env.execute();    }}

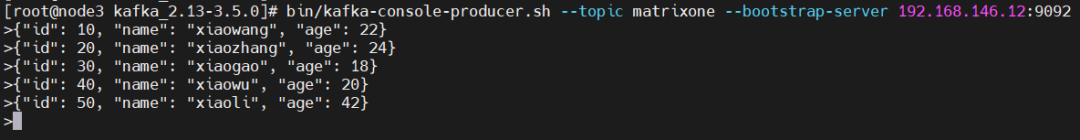

bin/kafka-console-producer.sh --topic matrixone --bootstrap-server 192.168.146.12:9092

{"id": 10, "name": "xiaowang", "age": 22}{"id": 20, "name": "xiaozhang", "age": 24}{"id": 30, "name": "xiaogao", "age": 18}{"id": 40, "name": "xiaowu", "age": 20}{"id": 50, "name": "xiaoli", "age": 42}

mysql> select * from test.users;+------+-----------+------+| id   | name      | age  |+------+-----------+------+|   10 | xiaowang  |   22 ||   20 | xiaozhang |   24 ||   30 | xiaogao   |   18 ||   40 | xiaowu    |   20 ||   50 | xiaoli    |   42 |+------+-----------+------+5 rows in set (0.01 sec)
